The Art and Science of Templating: Precision in Marine Glazing
At Integ Marine Group, we understand that the success of marine window replacement hinges on meticulous planning and execution. Central to this process is templating, a critical step that ensures new windows fit precisely, maintain structural integrity, and uphold the aesthetic standards of your vessel.
Understanding Templating in Marine Window Replacement
Templating involves creating an exact replica or pattern of the window to be replaced. This template serves as a guide for fabricating the new glass, ensuring it matches the original in size, shape, and curvature. Given the unique contours and designs of various vessels, templating is indispensable for achieving a seamless fit.
Templating Methods Employed by Integ Marine Group
We utilise several templating techniques, each selected based on the specific requirements of the project:
1. Mylar Templating
- Application: Ideal for flat glass surfaces.
- Process:
- A transparent Mylar sheet is cut to approximate size.
- The sheet is affixed over the existing window using double-sided tape.
- Using a permanent marker, the exact outline of the window is traced, including any holes or notches.
- The template is labelled with pertinent information such as glass thickness, tint, and any special features.
- Advantages: Quick and cost-effective for straightforward window shapes.
2. MDF (Medium-Density Fibreboard) Templating
- Application: Suitable for complex or irregular window shapes.
- Process:
- MDF is cut and shaped to match the window opening.
- This rigid template provides a durable pattern for fabrication.
- Advantages: Offers a sturdy and precise guide, especially beneficial for unique or intricate designs.

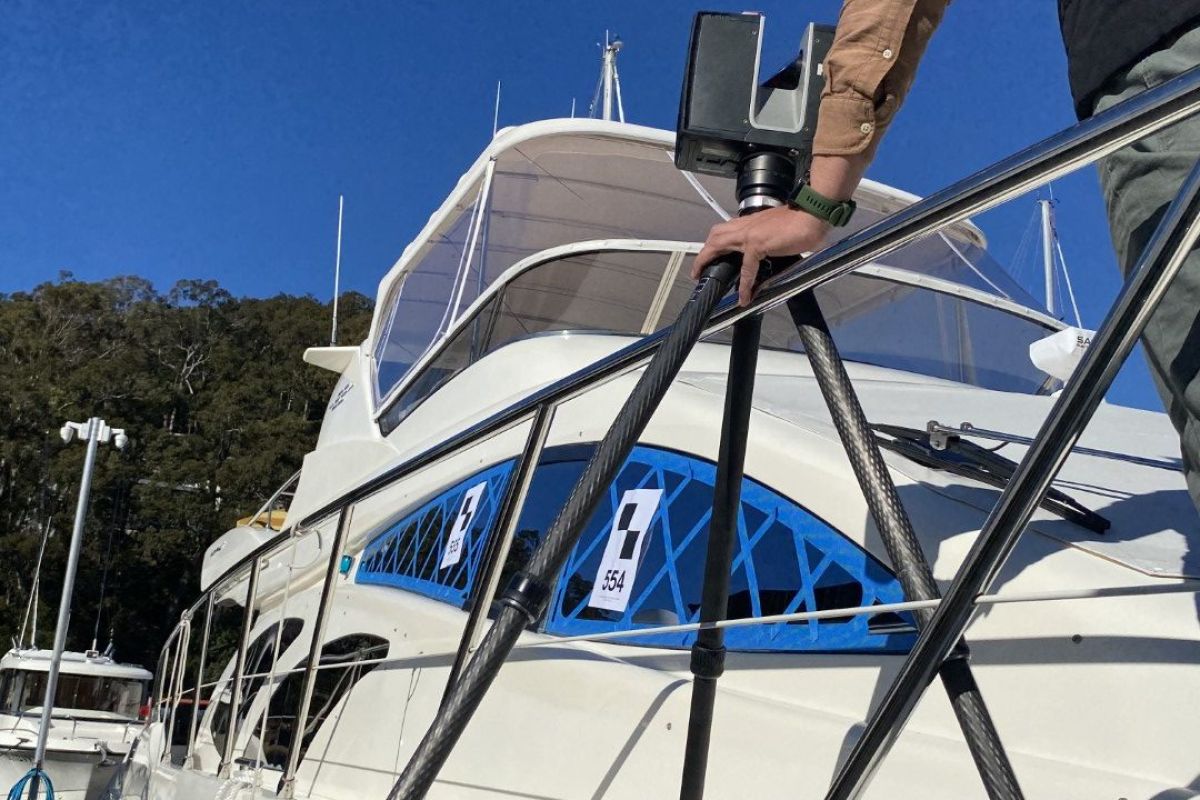

3. Digital Scanning
- Application: Best for curved or compound surfaces.
- Process:
- Utilising advanced 3D scanning technology, we capture the exact dimensions and curvature of the window area with precision.
- The digital data is used to create a precise model for fabrication.
- Advantages: Ensures unparalleled accuracy, particularly for complex geometries.
Step-by-Step Templating Process
1. Preparation:
- Clean the window area thoroughly.
- Apply tape around the window edges to create contrast for accurate tracing.
2. Template Creation:
- Depending on the chosen method, create the template using Mylar, MDF, or digital scanning.
3. Documentation:
- Record all necessary details on the template, including:
- Glass thickness
- Tint or coating specifications
- Edge finishes
- Certification requirements (e.g., ISO standards)
- Vessel name and window location
4. Fabrication:
- Send the completed template to our manufacturing facility.
- Utilise the template to cut and shape the new glass precisely.
5. Installation:
- Carefully install the new window, ensuring a perfect fit and seal.
The Importance of Accurate Templating
Accurate templating is vital for several reasons:
- Structural Integrity: Ensures the window contributes to the vessel’s overall strength.
- Weatherproofing: Prevents leaks and water ingress.
- Aesthetic Consistency: Maintains the vessel’s design and appearance.
- Compliance: Meets industry standards and certifications.
Expertise and Attention to Detail
Templating requires a high level of skill and attention to detail. Our team of experienced professionals is trained to handle the nuances of each method, ensuring that every template is crafted with precision. Factors such as sunlight reflection, complex curves, and tight tolerances are meticulously considered to achieve the best results.
Commitment to Quality and Innovation
At Integ Marine Group, we are committed to delivering superior marine glazing solutions. Our investment in advanced templating techniques and continuous staff training reflects our dedication to quality and innovation. Whether it’s a luxury yacht, commercial vessel, or sailing boat, we ensure that each window replacement project is executed flawlessly from template to installation.
For more information or to schedule a consultation, please contact Integ Marine Group on 1300 000 128. Let us help you navigate your marine glazing needs with precision and expertise.
